POLAR FIS+ Advanced - Newest edition (PF04) - Volkswagen / Seat / Skoda

€289.00
Tax included

Data sheet

Brands
Seat
Brands
Skoda
Brands
Volkswagen
Model
Caddy
Model
Eos
Model
Jetta
Model
Golf
Model
Passat
Model
Scirocco
Model
Touran
Model
Altea
Model
Leon
Model
Octavia
Model
Yeti
Model
Tiguan
Year
Caddy (2K) | 2005 - 2015
Year
Eos (1F) | 2006 y posteriores
Year
Jetta (1K) | 2005 - 2011
Year
Golf V (1K) | 2003 - 2008
Year
Golf VI (5K) | 2009 - 2012
Year
Passat (B7/3C) | facelift 2011 y posterior
Year
Scirocco (13) | 2008 - 2015
Year
Tiguan (5N) | 2008 - 2015
Year
Touran (1T1) | 2003 - 2006
Year
Touran (1T2) | 2007 - 2010
Year
Altea (5P) | 2004 y posterior
Year
Leon (1P) | 2005 - 2012
Year
Octavia II (1Z) | 2004 - 2012
Year
Yeti (5L) | 2008 y posterior
PF03-WH
4 Items

Specific References

Polar FIS+ Advanced PF04 Edition is the evolution of the previous Polar FIS+. It adds new parameters in addition to new features.

Product Options
FIS screen type    * Required
FIS screen type :
Qty :

Polar FIS+ Advanced PF04 Edition is the evolution of the previous Polar FIS+. It adds new parameters in addition to new features.

The Polar FIS+ enabled viewing vehicle parameters in the FIS screen, but Polar FIS+ Advanced has been improved with more parameters, it also includes new features like the ability to modify the number of flashes of intermittent comfort indicators, function automatic lowering of the mirror on the passenger side when engaging reverse and some functions which can only be activated with a VCDS Diagnostic cable, among other options.

New Polar FIS+ Advanced PF03 (New wire, new PCB and support for vehicles with KESSY)

Compatible vehicles with Polar FIS+ Advanced:



Polar FIS+ Advanced main features:

Polar FIS+ Advanced it's now compatible with the new "White" dashboard screens (FIS)

Polar FIS+ Advanced parameters:

  • Real speed (readed from ECU)
  • Oil temperature (°C / °F)
  • Coolant temperature (°C / °F)
  • Outdoor temperature  (°C / °F)
  • Admision temperature (°C / °F)
  • Turbo pressure
  • RPM motor
  • Voltage of the battery.
  • Fuel remaining (Litres / Gallons)
  • Atmospheric pressure
  • Pressure fuel pump
  • Motor load
  • Ambient Temperature (engine ECU)
  • Coolant temperature engine output.
  • Coolant temperature leaving the radiator.
  • Mass air flow
  • Admision pressure
  • Sensor 1 throttle pedal
  • Sensor 2 throttle pedal
  • Sensor 1 throttle valve
  • Sensor 2 throttle valve
  • Horse power used (CV)
  • Oil level
  • Minimum oil level
  • Brake master cylinder pressure
  • Pressure in the fuel rail
  • Torque used NM
  • Injection timming
  • Injection quantity
  • Injection angle
  • Injection start
  • TV Free function

Intermittent comfort  function:

The role of the comfort intermittent, allows you to select the number of intermittent flashes that the comfort indicator makes. Standard, with one touch gives 3 flashes intermittently with Polar FIS+ Advanced, select up to 10 flashes.  You can also cancel additional flashes by pressing the indicator comfort again, for example, if you have set the indicator at 10 flashes on comfort, it will flash with a short press on the control 10 flashes, unless pressed again to cancel.

Mirrors down function:

Advanced Polar FIS+ Advanced can be configured to engage on selection of the reverse gear for the passenger mirror to dip down automatically to a preset position. There are 2 modes: Manual and Automatic.
In manual the mirror will lower only if  the passenger position “L” is selected.
In automatic, the mirror will be lowered only when the car is parked with the indicator directed towards the space.

NOTE: Due to construction features of vehicles it cannot be guaranteed that mirror position will be "perfect". On models equipped with this function from factory the mirror incorporate a position sensor, which does not happen with those without park assist mirrors, so the mirror will function in the same way, but can not be guaranteed to position "millimeter perfect".


Available diagnostic functions:

 At the moment the available diagnostic functions are the following:

  • Modification of the sensitivity of the rain sensor.
  • Modification of the sensitivity of the light sensor.
  • Enable / Disable American DLR.
  • Enabling / Disabling daytime running lights.
  • Enabling / Disabling cornering fog lights.
  • Enabling / Disabling second rear fog light (where bulb exists).
  • Enable / disable automatic closing from 15 km / h.
  • Enable / disable rain closing.
  • Enabling / Disabling one touch closing windows.
  • Enable / Disable hazard warning in case of sharp braking.

NOTE: These functions, Polar FIS+ Advanced performs are via coding of the ECU with the requested function, so if this function is not supported by your vehicle ECU, then it cannot be activated.

More features and functions of the Polar FIS+ Advanced:

  • Built in VIM to enable video on stereo screen while vehicle is in motion.
  • Polar FIS+ Advanced supports OEM bluetooth and Fiscon bluetooth, unlike other products, Polar Advanced FIS does not use the Bluetooth menu in the FIS, but creates a new menu called Advanced Polar FIS.
  • The name of the created menu is customisable, which can substitute the name Polar Advanced FIS by the text you want (up to 10 characters)
  • Option to turn off the Polar FIS+ Advanced screen off, making the unit undetectable when taking the car in for service or repair. Is reactivated by simply pressing the OK button on the steering wheel or windshield wiper lever for 10 seconds.
  • Automatic temperature units (° C, ° F), Speed (kmh / mph) and Size (Litres / Gallons) selected in the FIS.
  • Manual selection of the units in which you want to display the parameters relating to pressure. Automatic, mbar, bar, PSI.
  • Multi-function steering wheel / Wiper stalk control.

The keys can be set from within the Polar FIS+ Advanced menu do the following:

  • Modify volume
  • Changing audio track
  • Change the parameters displayed in the bottom of the screen line Polar FIS +

You can also configure the keys inside the AUDIO menu do the following:

  • Modify volume
  • Change audio track (useful for cars in which the multifunction steering wheel is not installed at the factory and these keys do not work)

IMPORTANT -  On vehicles without multifunction steering wheel, the function to change audio track it's not available yet. The keys function of the steering wheel are not available in all vehicle models, it depends of the vehicle configuration.

  • Polar FIS+ Advanced automatically discharged at the gateway, so diagnostic software it's not necessary after the installation.
  • Updates via internet

Polar FIS+ Advanced operation video:

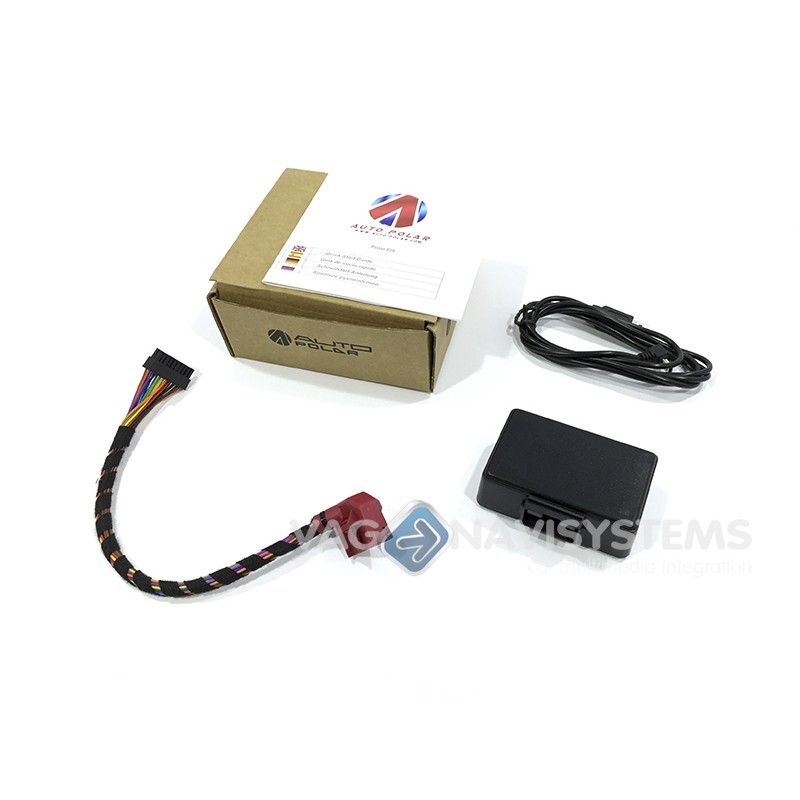

Package Contents

  • 1 x Polar FIS+ Advanced (main hardware)
  • 1 x Connection cable (gateway)
  • 1 x USB Data cable (for upgrade)
  • Quick start guide - user manual

Notes

  • Before order this product It's essential to indicate if the FIS screen is white or red. (choose it at the "FIS screen type" section above product description)
  • IMPORTANT -   On vehicles without multifunction steering wheel, the function to change audio track it's not available yet. The keys function of the steering wheel are not available in all vehicle models, it depends of the vehicle configuration.
  • Due to the construction features of the vehicles, a "perfect" positioning of the mirrors cannot be assured. On models that equips this factory function, the mirros have a position collector, this not happen with which do not have this factory position collector, but the mirrors function will work correctly, although a "millimetric" position of the mirrors cannot be assured.
  • For the functions activation: Polar FIS+ Advanced performs the task of encoding the ECU with the function requested, so if the function it's not supported by the ECU, it cannot be activated.
