Touch Navigation system - NaviTouch® Android 2.0 - GPS, Wifi, USB, SD, BT + A2DP

€879.00
Tax included
NTA2RRDS8
2 Items

Specific References

NaviTouch® Android - JellyBean 5.1.1

Product Options
Monitor size    * Required
Monitor size :
Qty :

NaviTouch® Android - JellyBean 5.1.1

  • Full and specific integration Android system for your vehicle

Compatibility:

  • Range Rover Evoque 2015+ with 8 or 10" Incontrol Touch
  • Range Rover Sport 2015+ with 8 or 10" Incontrol Touch

Requierements:

  • Capacitive 8 or 10" color display (vehicles from 2015 onwards)

Exclusive features:

  • If for something is highlighted the Android operative system, it's for its freedom of use!
  • With the NaviTouch® Android the portable GPS devices use inside your vehicle it's over, suction cups, wires or objects that interrupts your driving safety, also, the Audi's vehicle interior aesthetics will remain intact. You will have an Android tablet integrated at the screen of your vehicle!
  • Acces to Google Play store with an internet connection, possibility to install software through its SD card reader input (up to 64gb) and a user's interface simply optimized for its use and operation at the vehicle, this makes that this system have the perfect formula to be the product that you're waiting for, and easy product to use, fast and full integrated on your vehicle.
  • Fully integrated system, using the vehicle's original screen (8 or 10” color screen).

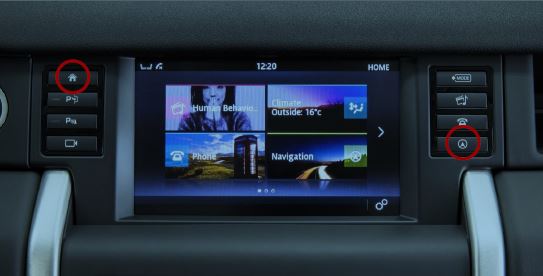

  • Acces to the system through the vehicle's head unit “NAV/MUSIC” button.

Additional connections:

  • Aftermarket rear view camera input.
  • SDHC card reader (up to 64gb).
  • 2x additional USB inputs (Media).
  • 3x Audio/Video inputs (RCA).
  • Microphone, to use handsfree bluetooth function and apps which operate with voice commands.
  • USB OTG input.

Main features:

  • The operative system and the user's interface were specially designed for the automotion use, the menus design, the icons position on the screen, and the whole system management, has been maded considering the touch screen use and management at a vehicle.
  • System Smoothness insured: Device gifted with a Nexell S5P6818 Cortex A53 Octa core 1.6GHz processor with 16Gb of internal memory (storage), operating with Android 5.1.1.
  • Access and download of content from the official Google Play Store. Availability of a wide range of applications, possibilitys and an endless array of content to download and use in your device.
  • Possibility to connect via internet through Wifi, mobile data 3G/LTE or Wifi (hot spot); (3G/LTE dongle not included).
  • Bluetooth handsfree function and Bluetooth A2DP audio streaming reproduction.
  • GPS data reception (Ublox-8 Glonass), for using any kind of Android compatible navigation software.
  • Microphone, for handsfree bluetooth function usage and also the use of applications compatible with voice control.

Technical specifications:

  • O.S: Android 5.1.1 Lollipop.
  • CPU: Nexell S5P6818 Cortex A53 Octa core 1.6GHz.
  • Internal memory: DDR3 2GB RAM + 16GB eMMC.
  • External memory: SDHC (up to 64gb) 1x USB OTG 2.0.
  • Connections: 4x USB 2.0, 2x video inputs (CVBS), 1x RGB output, 1x video output (CVBS), 1x audio output (stereo), 1x external speaker (mono), 1x microphone.
  • GPS: 1x GPS input (SiRF).
  • Operating Temperature: ~0º to ~60º.

You could also install an aftermarket integrated rear view camera (*optional), with camera's image signal autoswitch when engaging rear gear of the vehicle.

*Check related products.

Package Contents

  • Android Interface RGB 5.1.1
  • Specific video inserter interface
  • Main harness, includes plugs to:
    • GPS antenna
    • CAN BUS
    • Switch
    • Speaker
    • Audio output (stereo)
    • 3x Audio/Video outputs
    • Rear view camera
  • GPS Antenna
  • LVDS monitor's cable connection
  • Wifi dongle
  • Microphone
  • 2x USB 180cm extension to embed
  • 1x SD 40cm extension plug
  • Integration audio module with Plug & Play adapter

Notes

  • Before make an order, it's necessary to send us an email with your vehicle's chassis VIN number and some images of the cockpit dashboard. Our team will check if the vehicle's system is suitable with the NaviTouch® system. You can send the chassis number to info@vag-navisystems.com
  • We recommend that the installation will be performed by a qualified specialist

Audio integration:

  • Essential to have Aux-in
  • Audio insertion can only be done through the auxiliary sound input, if the vehicle has it.
